Plans to create turning target system for RangeUSA lanes
I've spent some time this week getting what I believe is a rock solid TTS working at RangeUSA. You can read about the turning target system here.

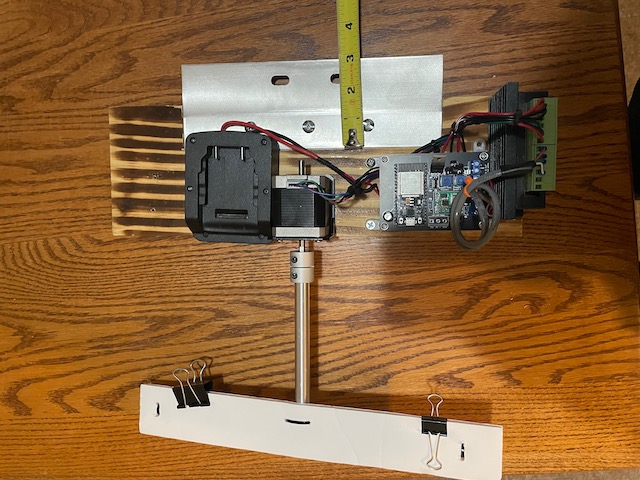

I have a 1/4" plate of aluminum that is 8 3/4" wide by roughly 3" tall. You can use anything for this, plexiglass, hard plastics, etc. Drill two elliptical holes in it 5/16's tall x just over a half wide. It's not real critical, as the holders at Range USA have 2 screws that grip their cardboard inside the lane target trolly that is 2" apart. This gives you some wiggle room. The wood behind the metal plate is 4.5" tall. You could just use 6" x 14" piece of metal, plexiglass, plastic, or wood. Just don't go thicker than 3/8" for it work inside the clamps.THat's why I'm using the 1/4" plate and it works perfectly. It's VERY snug inside with no chance of falling.
I know it looks crowded on the right, but since I'm using a dewalt battery and a dewalt dock to power it, the weight balance worked out like you see in the photos.
I mounted the TTS circuit board DIY or you can buy it from me here assembled just like below:
The rest of the TTS you need some more components. I can build it and sell it to you per above, or you can simply buy it from amazon using this list;

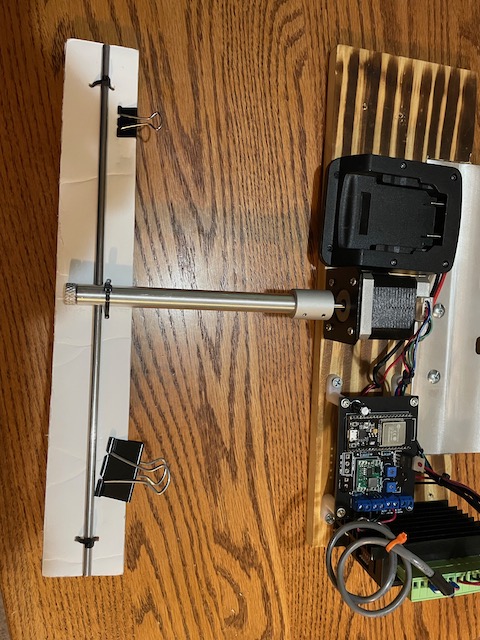

The back of the target holder is as follows:
Foamboard from a local craft store. 8mm down rod held on by the coupler on the Amazon Wish list, and a cross bar (dowel rod) drilled through and zip tied. The amazon list has a flange and a 8mm rod that would arguably work better.
I've tested and tested, and this seems to be the best setup I've done for RangeUSA lanes. Good luck, and happy shooting.
I have a 1/4" plate of aluminum that is 8 3/4" wide by roughly 3" tall. You can use anything for this, plexiglass, hard plastics, etc. Drill two elliptical holes in it 5/16's tall x just over a half wide. It's not real critical, as the holders at Range USA have 2 screws that grip their cardboard inside the lane target trolly that is 2" apart. This gives you some wiggle room. The wood behind the metal plate is 4.5" tall. You could just use 6" x 14" piece of metal, plexiglass, plastic, or wood. Just don't go thicker than 3/8" for it work inside the clamps.THat's why I'm using the 1/4" plate and it works perfectly. It's VERY snug inside with no chance of falling.
I know it looks crowded on the right, but since I'm using a dewalt battery and a dewalt dock to power it, the weight balance worked out like you see in the photos.
I mounted the TTS circuit board DIY or you can buy it from me here assembled just like below:
The rest of the TTS you need some more components. I can build it and sell it to you per above, or you can simply buy it from amazon using this list;
The back of the target holder is as follows:
Foamboard from a local craft store. 8mm down rod held on by the coupler on the Amazon Wish list, and a cross bar (dowel rod) drilled through and zip tied. The amazon list has a flange and a 8mm rod that would arguably work better.
I've tested and tested, and this seems to be the best setup I've done for RangeUSA lanes. Good luck, and happy shooting.
Re: Plans to create turning target system for RangeUSA lanes
Okay I will bite: What is the cost for a plug-n-play system delivered?
Allen Barnett- Posts : 523
Join date : 2012-10-22
Age : 68
Location : Central Missouri
Re: Plans to create turning target system for RangeUSA lanes
Basic circuit board is $100. S&H free. Cheapest option.
Circuit board, motor, motor mount, stepper motor driver, dewalt battery dock and it all pre-wired $170 will get you the rest. $7.00 s&h.
I don't ship the batteries (or power) or the wood / metal backing...too much of a pain. So it's always going to have some DIY components to it. But the assembly is quick and painless after a brief trip to lowes.
either of these batteries will work: TalentCell Rechargeable 12V 3000mAh Lithium ion Battery Pack for LED Strip, CCTV Camera and More, DC 12V/5V USB Dual Output External Battery Power Bank with Charger, Black
TalentCell Rechargeable 12V 6000mAh/5V 12000mAh DC Output Lithium ion Battery Pack for LED Strip and CCTV Camera, Portable Li-ion Power Bank with Charger, Black
Or you can get the battery & charger from amazon: https://www.amazon.com/hz/wishlist/ls/NUFYEFFD0N16?ref_=wl_share
Circuit board, motor, motor mount, stepper motor driver, dewalt battery dock and it all pre-wired $170 will get you the rest. $7.00 s&h.
I don't ship the batteries (or power) or the wood / metal backing...too much of a pain. So it's always going to have some DIY components to it. But the assembly is quick and painless after a brief trip to lowes.
either of these batteries will work: TalentCell Rechargeable 12V 3000mAh Lithium ion Battery Pack for LED Strip, CCTV Camera and More, DC 12V/5V USB Dual Output External Battery Power Bank with Charger, Black
TalentCell Rechargeable 12V 6000mAh/5V 12000mAh DC Output Lithium ion Battery Pack for LED Strip and CCTV Camera, Portable Li-ion Power Bank with Charger, Black
Or you can get the battery & charger from amazon: https://www.amazon.com/hz/wishlist/ls/NUFYEFFD0N16?ref_=wl_share
Re: Plans to create turning target system for RangeUSA lanes
Is it compatible with the Bullseye Match App?
Allen Barnett- Posts : 523
Join date : 2012-10-22
Age : 68
Location : Central Missouri
Re: Plans to create turning target system for RangeUSA lanes
Yes, bullseye match is a requirement. See: https://github.com/100-5x/Bullseye-Target-System/wiki/Installing-the-App-&-Connecting
Re: Plans to create turning target system for RangeUSA lanes
I have been shooting at Range USA. Which location or state are you in? Do you know which locations have used this? Are their carriers a standard system/size? Did you approach them about installing this? Or how did you go about doing it?
If you shoot the rod, is the system toast?
If you shoot the rod, is the system toast?
AndyLueck- Posts : 40
Join date : 2017-03-03
Age : 42
Location : Madison, WI
Re: Plans to create turning target system for RangeUSA lanes
I am in Indiana. I approached the local range manager with my idea of hanging a lightweight fixture for bullseye practice. He agreed to look at the system and determine if he thought it was too heavy. I built my prototype and took it in, and they agreed to let me use it.
I do not know if all ranges are the same. I took a piece of tag board (the nra b 16 target) and replaced the range USA cardboard with that to get good indentations of where the pins are for the hangers. Measured from there and that’s what you see above.
Don’t shoot the rod. . You will see on the Amazon list that everything is inexpensive. If you are concerned with hitting the down rod, use a wood rod, plastic or fiberglass. Would probably take some weight off too.
I am trying to work with RangeUsa to let us host indoor leagues there. There is another thread on BE Forum with that info. I’m hosting a virtual league but hope to get RangeUsa to sponsor us and even stock the turners in house. The plans are completely open for anyone who truly wants to do it completely on their own so range USA could add them at little cost and really help our sport.
I do not know if all ranges are the same. I took a piece of tag board (the nra b 16 target) and replaced the range USA cardboard with that to get good indentations of where the pins are for the hangers. Measured from there and that’s what you see above.
Don’t shoot the rod. . You will see on the Amazon list that everything is inexpensive. If you are concerned with hitting the down rod, use a wood rod, plastic or fiberglass. Would probably take some weight off too.
I am trying to work with RangeUsa to let us host indoor leagues there. There is another thread on BE Forum with that info. I’m hosting a virtual league but hope to get RangeUsa to sponsor us and even stock the turners in house. The plans are completely open for anyone who truly wants to do it completely on their own so range USA could add them at little cost and really help our sport.
Re: Plans to create turning target system for RangeUSA lanes
What's the total weight? I'd be interested to bring this over to my range as well.
AnthonyJ- Posts : 8
Join date : 2018-10-01
Location : Massachusetts
Re: Plans to create turning target system for RangeUSA lanes
Our indoor range has turners, which we are not allowed to use (no one can use them because they require thinking on the part of range mngmt.), but they all have an angled 1/4” aluminum deflection plate in front of the mechanism.
I assure you every one of those plates is very essential and have taken dozens of shots. You really should assume that sooner or later, your turner is gonna take a hit. I will admit to having an occasional “early flyer” on the range, but new folks will stick a bullet about anywhere in a four foot radius at 25 and 50 yards.
It is one thing for your personal use, but once you are letting anyone that shows up for a BE practice aim a gun at it… it only a matter of time before you get handed a pile of shot up parts and an apology.
Spend some time at your average shooting range and you quickly realize no one cares about range equipment, until it breaks. They get irate if it is the range’s fault. They pack up quietly and leave before anyone notices if it is their fault.
Shielding aside, I really like your portable concept though. There is some good potential there.
I assure you every one of those plates is very essential and have taken dozens of shots. You really should assume that sooner or later, your turner is gonna take a hit. I will admit to having an occasional “early flyer” on the range, but new folks will stick a bullet about anywhere in a four foot radius at 25 and 50 yards.
It is one thing for your personal use, but once you are letting anyone that shows up for a BE practice aim a gun at it… it only a matter of time before you get handed a pile of shot up parts and an apology.
Spend some time at your average shooting range and you quickly realize no one cares about range equipment, until it breaks. They get irate if it is the range’s fault. They pack up quietly and leave before anyone notices if it is their fault.
Shielding aside, I really like your portable concept though. There is some good potential there.
willnewton- Admin
- Posts : 1108
Join date : 2016-07-24
Location : NC
DA/SA likes this post
Re: Plans to create turning target system for RangeUSA lanes
Without the battery, 2.8 pounds. 3.6 pounds with a dewalt 2 Ah battery. I also use a smaller motor for my indoor build: https://www.amazon.com/Stepper-Motor-Bipolar-64oz-Printer/dp/B00PNEQI7W/ref=sr_1_3?crid=33P1TF61TN22W&keywords=nema17+stepper+motors&qid=1667911717&sprefix=nema17%2Caps%2C256&sr=8-3AnthonyJ wrote:What's the total weight? I'd be interested to bring this over to my range as well.
as you can seem build uses aluminum rods, backing plate (liked the look), etc. I'm toying with the idea to use a plastic board as the backing for even less weight.
For my dad's build, I used a different power supply: https://www.amazon.com/TalentCell-Rechargeable-3000mAh-Lithium-External/dp/B01M7Z9Z1N/ref=sr_1_4?crid=IDRMKDNYBGHO&keywords=cctv+battery&qid=1667911885&sprefix=cctv+batter%2Caps%2C141&sr=8-4. which is .4 pounds and lighter yet.
The neat part about the current design, I take off the coupler, and the entire unit fits in my gunbox.
Re: Plans to create turning target system for RangeUSA lanes
willnewton wrote:Our indoor range has turners, which we are not allowed to use (no one can use them because they require thinking on the part of range mngmt.), but they all have an angled 1/4” aluminum deflection plate in front of the mechanism.
I assure you every one of those plates is very essential and have taken dozens of shots. You really should assume that sooner or later, your turner is gonna take a hit. I will admit to having an occasional “early flyer” on the range, but new folks will stick a bullet about anywhere in a four foot radius at 25 and 50 yards.
It is one thing for your personal use, but once you are letting anyone that shows up for a BE practice aim a gun at it… it only a matter of time before you get handed a pile of shot up parts and an apology.
Spend some time at your average shooting range and you quickly realize no one cares about range equipment, until it breaks. They get irate if it is the range’s fault. They pack up quietly and leave before anyone notices if it is their fault.
Shielding aside, I really like your portable concept though. There is some good potential there.
Yes, the angled plate would be a good idea for someone to add. I typically shoot during the day at RangeUSA, few people there, and barring a flyer, I'm confident my system will last. Looking at each component, they're inexpensive...
Re: Plans to create turning target system for RangeUSA lanes
Oh, it will get shot!
heli_av8tor- Posts : 8
Join date : 2016-04-03
Re: Plans to create turning target system for RangeUSA lanes
For sure...eventually, it's inevitable. Then I'll fix it, and head back to the range...heli_av8tor wrote:Oh, it will get shot!
Re: Plans to create turning target system for RangeUSA lanes
smdial wrote:For sure...eventually, it's inevitable. Then I'll fix it, and head back to the range...heli_av8tor wrote:Oh, it will get shot!
Do we have a broom that fits the target hanger too, so we can recover our shot up computer parts from the floor down by the backstop? I could see Range policy becoming less permissive if the bullseye gizmo guys get a reputation for leaving parts downrange .
SingleActionAndrew- Admin
- Posts : 670
Join date : 2019-11-19
Location : IL, USA
Re: Plans to create turning target system for RangeUSA lanes
Let’s not give him too hard of a time just for one detail that can be changed or may not readily apply for personal use vs. public use.
This is still very early in the game and I have done many similar electronic software/hardware like this myself. I even made my own turner/timer for air pistol years ago. It is hard work just to get the thing working to start with. The rest will come in good time.
Keep up the good work.
This is still very early in the game and I have done many similar electronic software/hardware like this myself. I even made my own turner/timer for air pistol years ago. It is hard work just to get the thing working to start with. The rest will come in good time.
Keep up the good work.
willnewton- Admin
- Posts : 1108
Join date : 2016-07-24
Location : NC
Re: Plans to create turning target system for RangeUSA lanes
Thank you!willnewton wrote:Let’s not give him too hard of a time just for one detail that can be changed or may not readily apply for personal use vs. public use.
This is still very early in the game and I have done many similar electronic software/hardware like this myself. I even made my own turner/timer for air pistol years ago. It is hard work just to get the thing working to start with. The rest will come in good time.
Keep up the good work.
Looking at the other threads on how to get more people involved in our sport -- an affordable means to practice seems like a good place to start...yes, we'll have some issues, yes, it might get shot...so what?
AnthonyJ likes this post
Re: Plans to create turning target system for RangeUSA lanes
No personal attack intended. Hopefully it will go a long time between upgrade opportunities.
heli_av8tor- Posts : 8
Join date : 2016-04-03
Re: Plans to create turning target system for RangeUSA lanes
Our range has a piece of 2" steel angle iron running vertically to protect the bar the target hangs from. It's oriented with the top corner facing the incoming rounds, and they hold up to .45 hits, deflecting them mostly sideways and into the backstop. The whole thing goes back and forth as part of the trolley.
A similar horizontal shield would probably work to protect the servo and electronics too!
A similar horizontal shield would probably work to protect the servo and electronics too!
-TT-- Posts : 624
Join date : 2016-10-18
Re: Plans to create turning target system for RangeUSA lanes
Is there a photo of this thing hanging from a range USA holder?
As far as shooting the rod, my range USA is only 25 yards long. Given 10 rounds of 45, and if I hold my mouth just right, I bet that I could hit the rod.
As far as shooting the rod, my range USA is only 25 yards long. Given 10 rounds of 45, and if I hold my mouth just right, I bet that I could hit the rod.
RodJ- Posts : 905
Join date : 2021-06-26
Location : TX
Re: Plans to create turning target system for RangeUSA lanes
Some videos that are too large to host here :
https://github.com/100-5x/Bullseye-Target-System/tree/main/photos
https://github.com/100-5x/Bullseye-Target-System/tree/main/photos
